Textures are the 2D images placed on 3D models to give them their surface looks. For example, a simple cube model could be turned into a wooden box, or a man could have clothing designed for him. To apply the texture, the modeller must link the texture to the model. This page only applies to Blender.

Linking the textureEdit

  1. In the Properties window, open the Textures tab.
  2. Click new, and from the type dropdown box, choose Image or Movie.
  3. Under the Image heading, click open and choose your texture.
  4. You should now see something similar to this.

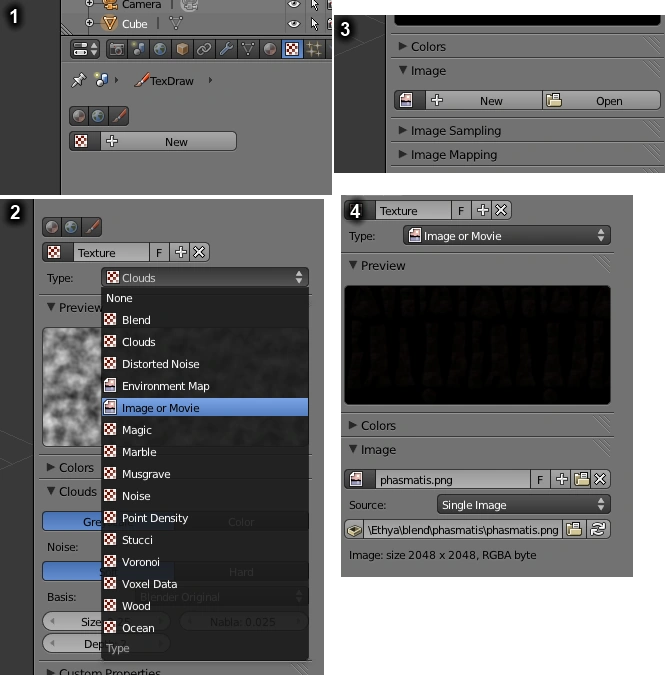

Attaching a texture

Proper previewing in blenderEdit

To view the texture in Blender, you must use a different method that does not allow exporting with the texture linked, so both must be done if you wish to be able to see the texture in Blender and when exporting.

  1. Open a UV/Image Editor window, ensure your model is selected in edit mode first.
  2. From the menu, choose Image > Open Image and select your image file.
  3. You should now see something similar to this.

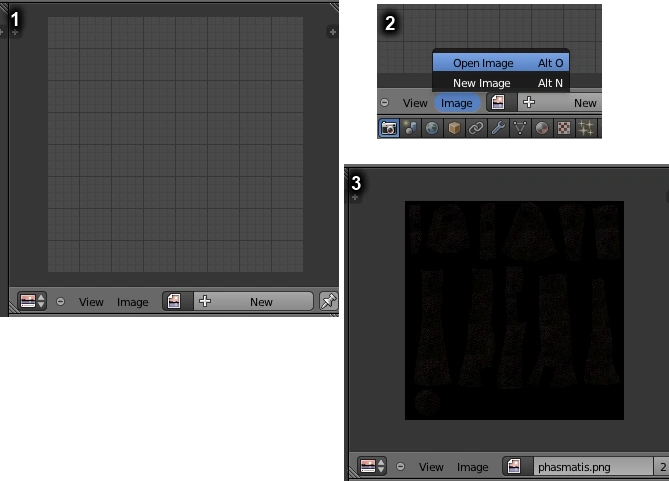

Previewing textures in Blender
